Wood-Fired Water Fireplace KRATKI MBM left 12 kW Ø 180
4.186,60 €
VAT included
Available
Ref. MBM/PW/10/L/BS/W
We will confirm delivery times, transport and installation with no obligation.
Description
The double-glass inserts from the MBM PW range are an economical and ecological solution with a water base unit, which does not differ from a typical air insert. Thanks to the unusual view of the fire and delicate frame, it fits perfectly into modern interior design. This type of fireplace is often chosen for houses with open spaces, such as living rooms combined with dining areas.
MODERN DESIGN
The insert is equipped with simple decorative glass, which makes it look elegant and modern. This solution visually enlarges the front part of the insert and highlights the view of the fire.
The door has a comfortable handle.
MAXIMUM ENERGY USE
More efficient combustion process and temperature maintenance to keep heat for longer, thanks to the TERMOTEC- coated combustion chamber. A heat-absorbing material that increases the temperature in the combustion chamber.
Post-combustion of fuel particles thanks to two deflectors extending the exhaust path. This process increases burning efficiency and ensures better energy use. It also minimises emissions of harmful substances into the atmosphere.
Air supply to the insert comes only from outside, thanks to the built-in air inlet connector fi 125 mm. It is controlled by an adjustable regulating valve with a adjuster under the door. This solution excludes errors due to improper use. The entire fault-free mechanism operates very quietly.
There is a triple combustion chamber air system in the insert. Primary air, which facilitates wood burning, is provided across the full width of the burner plate piece, where all the burning process takes place. Insert offers do not scratch so-called post-combustion phenomenon of ash. Secondary air - providing economical and ecological combustion -. is supplied by a hole system located on the rear wall
In addition, there is an air cleaning glass system (air curtain), which means that air is delivered directly to the glass through a channel system situated on the sides of the fireplace. In this way air is supplied to the top part of the combustion chamber, where gases produced by the wood burning process are burned, further limiting CO emissions into the atmosphere.
The use of such ventilation systems allows precise control over the combustion process.
A special unit containing water jacket and horizontally stacked flame tube, through which water flows, allows collecting heat from flue gases and transferring them to heating system for high energy efficiency. In addition, the device has a built-in coil pipe to protect it from overheating. The body of the water jacket is reinforced with pins.
Input/output connector for - 1 inch system, and pippe coil frac12; inch.
Durable and robust fire-tension doors are closed profile. Door seal is in a grooved channel, which ensures proper adhesion and prevents it from falling during operation.
CUSTOMER COMFORT
The device is equipped with a glass cleaning system - thanks to the so-called air curtain, airflow is distributed evenly, sweeping away glass settling and minimising soot. This allows maintaining an attractive and clean appearance of glass for long time.
Insert without grate, post-ash combustion called witch. In practice this means that fuel burns into ash which remains in minimum quantity. Thermal energy generated in this way is used to maximum.

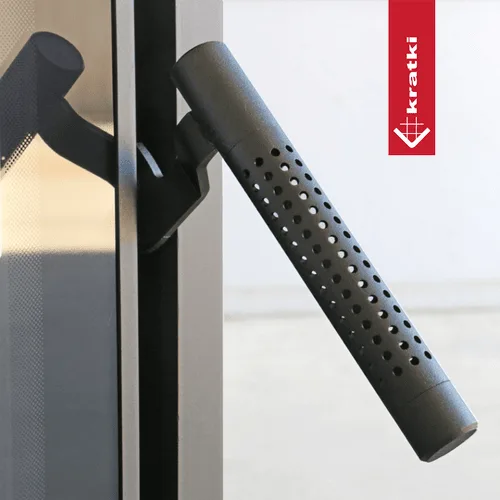

The special design of the perforated handle protects against excessive heating, which has influence on high comfort of fireplace use.
ECOLOGICAL BURNING
Thanks to its construction and triple combustion chamber ventilation system, cartridge meets ecological design requirements.
Specifications
- Material
- Acero
- Alto (cm)
- 122
- Ancho (cm)
- 78
- Profundidad (cm)
- 53
- Peso (kg)
- 208.5
- Potencia nominal (kW)
- 12
- Certificados
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350031551
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Rango de potencia calorífica (kW)
- 5.0 - 14.0
- Eficiencia térmica (%)
- 85
- Temperatura de los gases de combustión (oC)
- 181
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 180
- Clase energética
- A+
- EEI
- 111
- Eficiencia energética estacional (%)
- 75
- Potencia calorífica para la calefacción de espacios (kW)
- 5
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.098
- Emisión de CO (mg/m3)
- 1230
- Emisión de polen (mg/m3)
- 27
- Emisión de NOx (mg/m3)
- 98
- Emisión de OGC (mg/m3)
- 28
- Área activa mínima requerida de las rejillas de entrada (cm2)
- 135
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- 270
- Potencia media del agua (kW)
- 7
- Presión máxima de trabajo (bar)
- 2
- Capacidad de agua (l)
- 27
