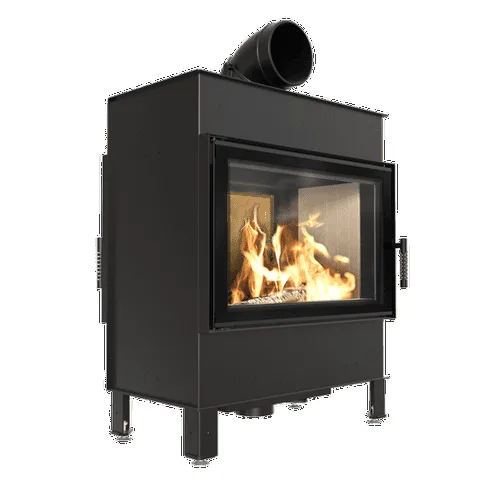

KRATKI LUCY TÚNEL 14 kW Wood-Burning Fireplace Ø 200 Steel Insert
3.454,55 €
VAT included
Available
Ref. LUCY/14/T
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy efficiency
maintenance-free longer heat retention thanks to the TERMOTEC ceramic lining in the combustion chamber which accumulates heat and raises the temperature inside the oven.
complete combustion down to ash thanks to two deflectors that extend the exhaust path. This process increases burning efficiency and guarantees better energy usage. It also minimises emissions of harmful substances into the atmosphere.
Air supply for inserts comes only from outside via an integrated air inlet connector fi 125 mm, controlled by an adjustable regulating valve under the door controller. This solution excludes errors caused by improper use. The entire mechanism operates very quietly and without problems.
This insert features a dual-air system in the combustion chamber. Primary air to establish ignition is supplied beneath the grate.
Furthermore, this insert is equipped with Galss Clea (air curtain) technology; air is supplied directly to the glass via channels located on both sides of the fireplace. This way oxygen reaches the top of the combustion chamber where post-combustion occurs for gases produced during wood burning while simultaneously reducing CO emissions harmful to the atmosphere.
This air system allows precise control over the recording process.
& nbsp;
HIGHEST LEVEL SAFETY
The front of the insert piece is equipped with heat-resistant ceramic glass capable of withstanding temperatures up to 660 °C. We offer certified quality and safety glass.
The special design of the perforated handle protects against excessive heating, ensuring high comfort during fireplace use.
Both body and front panel are resistant to high temperatures thanks to the use of high-quality steel.
Excellent airtightness achieved through solid welding made with noble gas shielding. Steel elements are cut using modern laser equipment and then bent in CNC press brakes.
& nbsp;
ECOLOGICAL COMBUSTION
The unit complies with ecological design standards and restrictions of the BImSchV 2 standard, which determines maximum CO emissions.
& nbsp;
COMFORTABLE USE
A special profiled TERMOTEC lower plate is used in this insert. Thanks to it the fireplace chamber is larger and allows more wood to be placed inside.
Movable grate and ash drawer allow keeping the insert clean.
Soot deposition reduction achieved through a glass cleaning system (air curtain). The air curtain separates the glass from the chamber so that the glass does not get dirty and emits more heat into the room
Insertion can be easily adjusted thanks to regulatable legs.

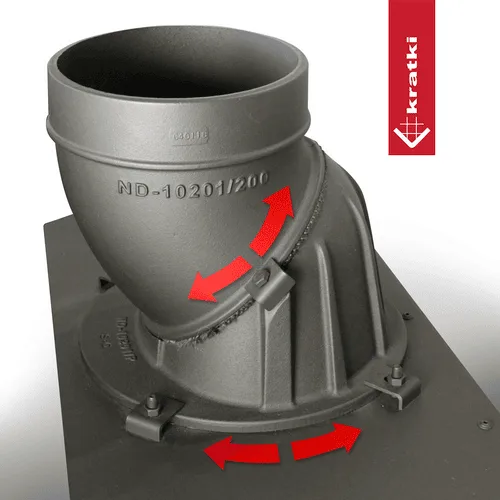

The model is equipped with a movable exhaust outlet, meaning no additional knees need to be purchased for installation. This is possible due to easy angle adjustment of connection with the chimney system. & Nbsp;
& nbsp;
MODERN DESIGN
The insert has two doors – front and rear (instead of a back wall), thanks to this solution heat can be emitted in both directions.
This type of insertion is usually chosen for installation between two adjacent rooms, e.g. living room and dining room or bedroom.
The insert features decorative glass panels making it look elegant and modern. This solution visually enlarges the front part of the insert piece and emphasises the fire view.
Insert door has a comfortable handle.
& nbsp;
& nbsp;
Specifications
- Color
- Negro
- Material
- Acero
- Alto (cm)
- 128
- Ancho (cm)
- 80.4
- Profundidad (cm)
- 42
- Peso (kg)
- 189
- Potencia nominal (kW)
- 14
- Certificados
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350021309
- Equipo
- Cargando la cámara de combustión, Ceniza, Toma de aire, Vidrio decorativo
- Versión
- Túnel
- Rango de potencia calorífica (kW)
- 6.0 - 17.0
- Eficiencia térmica (%)
- 81
- Temperatura de los gases de combustión (oC)
- 265
- Longitud máxima de la palanquilla (cm)
- 40
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Clase energética
- A
- EEI
- 106.71
- Potencia calorífica para la calefacción de espacios (kW)
- 14
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.1
- Emisión de polen (mg/m3)
- 18
- número de piezas en un paquete.
- 1
- FRENTE
- Frontal de acero con cristal serigrafiado
- Área activa mínima requerida de las rejillas de entrada (cm2)
- ?700
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- ?900
