Flat Resort 80 Wood-Burning Fireplace
1.614,14 €
KRATKI MBM Right 12 kW Wood-Fired Water Fireplace Ø 180
4.186,60 €
VAT included
Available
Ref. MBM/PW/10/P/BS/W
Free delivery. For the islands and destinations outside Europe, ask us for the cost. Delivery conditions
Questions before ordering? Check availability, delivery and accessories with our team.
We will confirm delivery times, transport and installation with no obligation.
Description

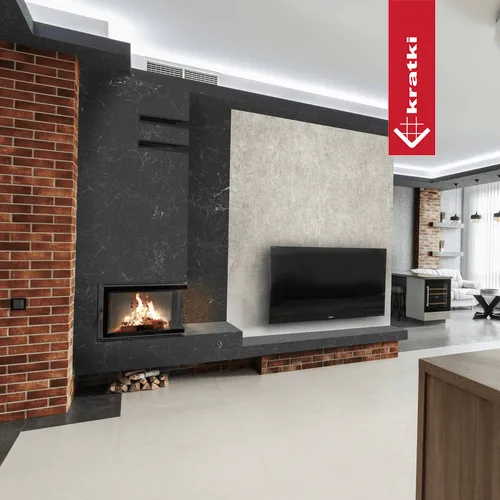

MBM PW line double-glass inserts are an economical and ecological solution featuring a water base unit, which does not differ from a typical air insert. Thanks to the unusual view of the fire and delicate frame that fits perfectly into modern interior design. This type of fireplace is often chosen for houses with open spaces, such as living rooms combined with dining areas.
MODERN DESIGN
The insert is equipped with simple decorative glass, which makes it look elegant and modern. This solution visually enlarges the front of the insert and highlights the view of the fire.
The door has a comfortable handle.
MAXIMUM ENERGY USE
More efficient combustion process and temperature maintenance to keep heat for longer, thanks to TERMOTEC- coated combustion chamber. A heat-absorbing material that increases the temperature in the combustion chamber.
Fuel particle post-combustion thanks to two deflectors extending the exhaust path. This process increases burning efficiency and ensures better energy use. It also minimises emissions of harmful substances into the atmosphere.
Air supply to the insert comes only from outside, thanks to the built-in air inlet connector fi 125 mm. Controlled by an adjustable regulating valve with a adjuster under the door. This solution excludes errors due to improper use. The entire fault-free mechanism operates very quietly.
There is a triple combustion chamber air system in the insert. Primary air, which facilitates wood burning, is provided across the full width of the burner plate piece, where all the burning process takes place. Insert offers do not scratch so-called ash post-combustion phenomenon. Secondary air - providing economical and ecological combustion -. Is supplied by a hole system located on the rear wall
Additionally, there is a glass cleaning system (air curtain), meaning air is delivered directly to the glass through a channel system situated on the sides of the fireplace. In this way air is supplied to the top of the combustion chamber, which burns gases produced by the wood burning process, further limiting CO emissions into the atmosphere.
Use of such ventilation system allows precise control over the combustion process.
A special unit containing water jacket and horizontally stacked flame tube, through which water flows, allows collecting heat from flue gases and transferring them to heating system for high energy efficiency. Additionally, device has built-in coil pipe to protect it from overheating. Water jacket body is reinforced with pins.
Inlet/outlet connector for the - 1 inch system, and pippe coil frac12; inch.
Robust and durable fire-tension doors are closed profile. Door seal is in a grooved channel, which ensures proper adhesion and prevents it from falling during operation.
CUSTOMER COMFORT
The device is equipped with glass cleaning system - thanks to so-called air curtain, airflow is distributed evenly, sweeping away glass settling and minimising soot. This allows maintaining an attractive and clean glass appearance for a long time.
Insert without grate, called ash post-combustion witch. In practice this means fuel burns to ash which remains in minimum quantity. Thermal energy generated in this way is used at maximum.

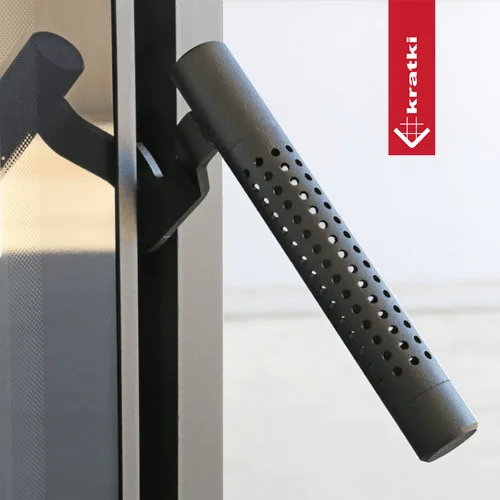

Specially designed perforated handle protects against excessive heating, having influence on high comfort of fireplace use.
ECOLOGICAL BURNING
Thanks to its construction and triple combustion chamber ventilation system, cartridge meets ecological design requirements.
Specifications
- Material
- Acero
- Height (cm)
- 122
- Width (cm)
- 78
- Depth (cm)
- 53
- Weight (kg)
- 208.5
- Nominal heat output (kW)
- 12
- Certificates
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Fuel type
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350031575
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Rango de potencia calorífica (kW)
- 5.0 - 14.0
- Eficiencia térmica (%)
- 85
- Temperatura de los gases de combustión (oC)
- 181
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Door opening
- Bien
- diámetro de la salida de gases de combustión
- 180
- Energy class
- A+
- EEI
- 111
- Eficiencia energética estacional (%)
- 75
- Potencia calorífica para la calefacción de espacios (kW)
- 5
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.098
- Emisión de CO (mg/m3)
- 1230
- Emisión de polen (mg/m3)
- 27
- Emisión de NOx (mg/m3)
- 98
- Emisión de OGC (mg/m3)
- 28
- Área activa mínima requerida de las rejillas de entrada (cm2)
- 135
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- 270
- Potencia media del agua (kW)
- 7
- Presión máxima de trabajo (bar)
- 2
- Capacidad de agua (l)
- 27
