Wood-Fired Water Fireplace KRATKI LUCY 20 kW Ø 200
3.890,15 €
VAT included
Available
Ref. LUCY/PW/20/W
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy usage
The body and front of the insert are heat-resistant, thanks to the high-quality steel used in production.
A special water system is obtained that allows a large amount of smoke heat to be transferred into the heating system, due to its high energy efficiency.
Overheating protection via an integrated coil tube -. 1/2" inlet/outlet connector.
Efficient recording process and temperature maintenance to keep heat for longer thanks to TERMOTEC combustion chamber coating -. Heat material that raises the accumulation of temperature in the combustion chamber.
More ecological combustion thanks to a double deflector system that extends the exhaust gas path.
Air supplied from outside only via an external air inlet fi 125mm biult-en. Single-air regulator adjustment prevents misuse.
Triple ventilation system for combustion chamber air: primary air - secondary air supplied below the grate through holes in a bottom wall. Additionally, designed clean glass system (air curtain).
HIGH LEVEL safety
Perfect tightness thanks to solid welds made with noble gas protection.
All steel parts are laser-cut and bent in CNC bending machines.
Insert front equipped with heat-resistant ceramic that withstands temperatures up to 660 °C.
CONVENIENT TO USE
Movable grate and ash pan allow cleaning the insert.

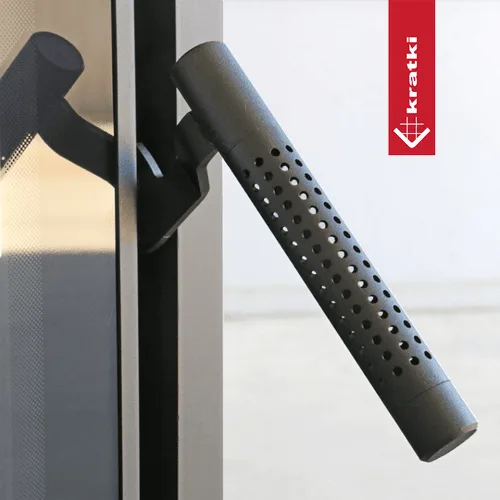

The special design of the perforated handle protects against excessive heating, which has a high comfort influence on fireplace use.
Reduction of soot deposition via a pure glass system (air curtain).
Can be used in different mounting conditions thanks to adjustable feet and mobile smoke outlet with 360 Regulation.
MODERN DESIGN
Decorative, heat-resistant glass that can withstand temperatures up to 660 °C. Gives a fireplace a modern and elegant look, visually enlarging the front of the insert.
An elegant and comfortable handle.
Specifications
- Material
- Acero
- Alto (cm)
- 138.4
- Ancho (cm)
- 100.1
- Profundidad (cm)
- 40.7
- Peso (kg)
- 293
- Potencia nominal (kW)
- 20
- Certificados
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350021743
- Equipo
- Cargando la cámara de combustión, Ceniza, Toma de aire, Vidrio decorativo
- Rango de potencia calorífica (kW)
- 9.0 - 24.0
- Eficiencia térmica (%)
- 82
- Temperatura de los gases de combustión (oC)
- 226
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Clase energética
- A+
- EEI
- 108
- Eficiencia energética estacional (%)
- 72
- Potencia calorífica para la calefacción de espacios (kW)
- 7
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.084
- Emisión de CO (mg/m3)
- 1056
- Emisión de polen (mg/m3)
- 22
- Emisión de NOx (mg/m3)
- 122
- Emisión de OGC (mg/m3)
- 60
- Área activa mínima requerida de las rejillas de entrada (cm2)
- 210
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- 420
- Potencia media del agua (kW)
- 13
- Presión máxima de trabajo (bar)
- 2
- Capacidad de agua (l)
- 45.5
