KRATKI LUCY 16 kW Wood-Fired Water Fireplace Ø 200
4.068,00 €
VAT included
Available
Ref. LUCY/PW/16/W
Free delivery. For the islands and destinations outside Europe, ask us for the cost. Delivery conditions
Questions before ordering? Check availability, delivery and accessories with our team.
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy utilisation
The body and front of the insert are heat-resistant, thanks to the high-quality steel used in production.
A special water system is obtained that allows a large amount of smoke heat to be transferred into the heating system, due to its high-energy efficiency.
Overheating protection via an integrated coil tube - 1/2" inlet/outlet connector.
Efficient recording process and temperature maintenance to keep heat for longer thanks to TERMOTEC combustion chamber coating -. Heat material that raises the temperature in the combustion chamber accumulation
More ecological combustion thanks to a double deflector system that extends the exhaust gas path.
Air supplied from outside only via an external air inlet fi 125mm. Air adjustment with a single regulator prevents misuse.
Triple ventilation system for combustion chamber air: primary air - secondary air supplied below the grate through holes in one of the bottom walls. Additionally, a clean glass system designed (air curtain).
HIGH LEVEL safety
Perfect tightness thanks to solid welds made with noble gas protection.
All steel elements are laser-cut and bent in CNC bending machines.
The insert front is equipped with heat-resistant ceramics that withstand temperatures up to 660 °C.
CONVENIENT TO USE
Movable grate and ash pan allow cleaning the insert.

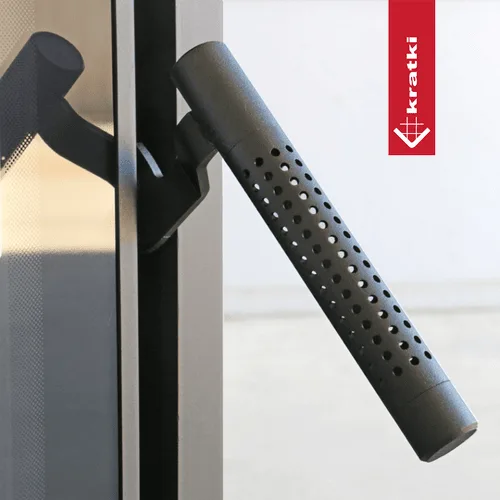

The special design of the perforated handle protects against excessive heating, which has a positive influence on the comfort of using the fireplace.
Soot deposition reduction via a pure glass system (air curtain).
Can be used in different mounting conditions thanks to adjustable feet and mobile exhaust flue with 360° regulation.
MODERN DESIGN
Decorative, heat-resistant glass that can withstand temperatures up to 660 °C. Gives the fireplace a modern and elegant look, visually enlarging the front of the insert.
An elegant and comfortable handle.
Specifications
- Material
- Acero
- Height (cm)
- 138.4
- Width (cm)
- 85.6
- Depth (cm)
- 40.7
- Weight (kg)
- 257
- Nominal heat output (kW)
- 16
- Certificates
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Fuel type
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350021576
- Equipo
- Cargando la cámara de combustión, Ceniza, Toma de aire, Vidrio decorativo
- Rango de potencia calorífica (kW)
- 7.0 - 19.0
- Eficiencia térmica (%)
- 84.4
- Temperatura de los gases de combustión (oC)
- 200
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Door opening
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Energy class
- A+
- EEI
- 112
- Eficiencia energética estacional (%)
- 74
- Potencia calorífica para la calefacción de espacios (kW)
- 6
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.089
- Emisión de CO (mg/m3)
- 1124
- Emisión de polen (mg/m3)
- 25
- Emisión de NOx (mg/m3)
- 146
- Emisión de OGC (mg/m3)
- 59
- Área activa mínima requerida de las rejillas de entrada (cm2)
- 180
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- 360
- Potencia media del agua (kW)
- 10
- Presión máxima de trabajo (bar)
- 2
- Capacidad de agua (l)
- 39
