KRATKI NADIA 14 kW Steel Wood-Burning Fireplace Ø 200
2.515,00 €
VAT included
Available
Ref. NADIA/14
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy usage
The body and front of the insert are resistant to high temperatures, thanks to the high quality steel used in production.
efficient engraving process and temperature maintenance to keep heat for longer thanks to combustion chamber coating with TERMOTEC -. Heat material that raises the temperature in the combustion chamber accumulation
fuel particle combustion thanks to deflector, which extends exhaust gas path.
Air supplied from outside only thanks to biult-en an external air inlet fi 125mm. Single-air regulator adjustment prevents misuse.
Triple combustion chamber air system: primary air directed to the burn plate; secondary air supplied by holes located in the rear wall. In addition, clean glass air (curtain air) system has been applied.
Combustion chamber cleaning thanks to hexagonal firebox.
HIGH level safety
perfect airtightness thanks to solid welds made in noble gas protection.
All steel elements are cut with laser and bent on CNC bending machines.
Insert front equipped with heat-resistant ceramic that withstands temperatures up to 660 ° C.
ecological combustion
The unit meets the requirements of eco-design standards and restrictions of the BImSchV 2 standard, which determines maximum CO emission.
convenient to use
Grateless fireplace filling - complete combustion in dust means that wood burns into fine ash in minimum quantity. thermal energy obtained from wood is exploited to the maximum.
Soot deposition reduction through a pure glass (air curtain) system.
Can be used under different mounting conditions thanks to adjustable feet and mobile smoke outlets with 360 Regulation.
Possibillity to change door opening direction from standard left opening to right opening.
MODERN DESIGN
decorative, heat-resistant glass that can withstand temperatures up to 660 ° C. Gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
elegant and comfortable sliding handle.
Specifications
- Color
- Negro
- Material
- Acero

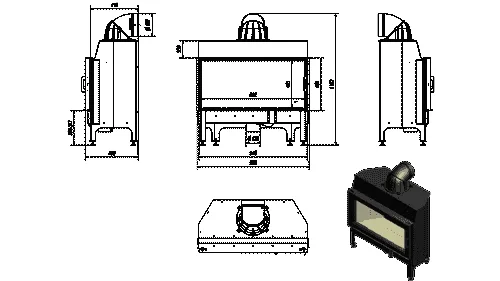

- Alto (cm)
- 116.2
- Ancho (cm)
- 97.9
- Profundidad (cm)
- 41.8
- Peso (kg)
- 173
- Potencia nominal (kW)
- 14
- Certificados
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350065631
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Versión
- De frente
- Rango de potencia calorífica (kW)
- 6.5 - 17.0
- Eficiencia térmica (%)
- 80
- Temperatura de los gases de combustión (oC)
- 245
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Clase energética
- A
- EEI
- 105.4
- Potencia calorífica para la calefacción de espacios (kW)
- 14
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.09
- Emisión de polen (mg/m3)
- 37
- número de piezas en un paquete.
- 1
- FRENTE
- Frontal de acero con cristal serigrafiado
- Área activa mínima requerida de las rejillas de entrada (cm2)
- ?700
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- ?900
