KRATKI NADIA Steel Wood-Burning Fireplace 13 kW Ø 200
3.016,00 €
VAT included
Available
Ref. NADIA/13
Free delivery. For the islands and destinations outside Europe, ask us for the cost. Delivery conditions
Questions before ordering? Check availability, delivery and accessories with our team.
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM ENERGY USE
The body and front of the insert are resistant to high temperatures, thanks to the high quality steel used in production.
Efficient combustion process and temperature maintenance to keep the heat longer thanks to combustion chamber lining with TERMOTEC -. Heat material that raises the temperature in the combustion chamber accumulation
Combustion of fuel particles thanks to deflector, which extends the exhaust gas trajectory.
Air supplied from outside only thanks to built-in external air inlet fi 125mm. Air adjustment with a single regulator that prevents improper use.
Triple air system of the combustion chamber: primary air directed to the combustion plate; secondary air supplied by holes located on the rear wall. In addition, the clean glass air system (air curtain) has been applied.
Cleaning of the combustion chamber thanks to hexagonal hearth.
HIGH SAFETY LEVEL
Perfect airtightness thanks to solid welds made under noble gas protection.
All steel elements are cut with laser and bent on CNC bending machines.
Insert front equipped with heat-resistant ceramic that can withstand temperatures up to 660°C.
ECOLOGICAL COMBUSTION
The unit meets the requirements of ecological design standards and restrictions of the BImSchV 2 standard, which determines the maximum CO emission.
CONVENIENT USE
Gateless loading of the fireplace - complete combustion into powder which means wood is burned into fine ash in minimal quantity. The thermal energy obtained from wood is exploited to the maximum.
Reduction of soot deposition through pure glass system (air curtain).
Can be used under different mounting conditions thanks to adjustable legs and smoke outlet with 360 Regulation.
Possibility to change the direction of door opening from standard opening on the left to opening on the right.
MODERN DESIGN
Decorative, heat-resistant glass that can withstand temperatures up to 660°C. Gives a fireplace a modern and elegant appearance, visually enlarges the front of the insert.
Elegant and comfortable sliding handle.

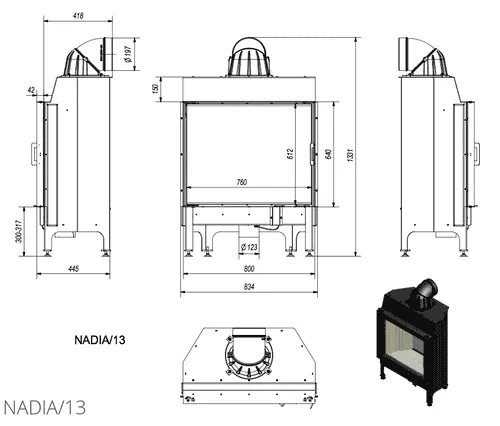

Specifications
- Colour
- Negro
- Material
- Acero
- Height (cm)
- 133.1
- Width (cm)
- 83.4
- Depth (cm)
- 41.8
- Weight (kg)
- 178
- Nominal heat output (kW)
- 13
- Certificates
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Fuel type
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350066843
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Version
- De frente
- Rango de potencia calorífica (kW)
- 6.0 - 16.5
- Eficiencia térmica (%)
- 81
- Temperatura de los gases de combustión (oC)
- 242
- Longitud máxima de la palanquilla (cm)
- 40
- CIERRE
- No
- Door opening
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Energy class
- A+
- EEI
- 106
- Eficiencia energética estacional (%)
- 71
- Potencia calorífica para la calefacción de espacios (kW)
- 13
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.09
- Emisión de CO (mg/m3)
- 1120
- Emisión de polen (mg/m3)
- 37
- Emisión de NOx (mg/m3)
- 114
- Emisión de OGC (mg/m3)
- 46
- Caudal másico de gases de combustión (g/s)
- 12.5
- número de piezas en un paquete.
- 1
- FRENTE
- Frontal de acero con cristal serigrafiado
- Área activa mínima requerida de las rejillas de entrada (cm2)
- ?700
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- ?900
