Flat Resort 80 Wood-Burning Fireplace
1.614,14 €

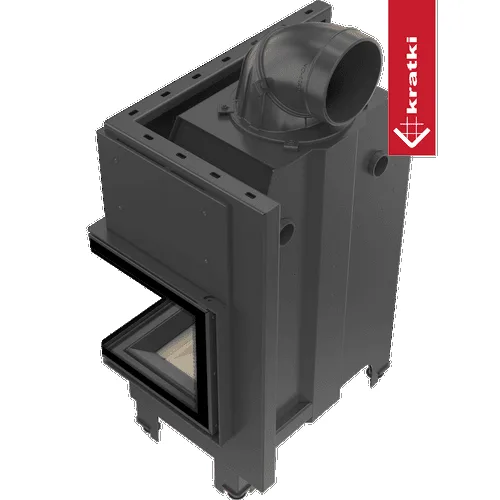

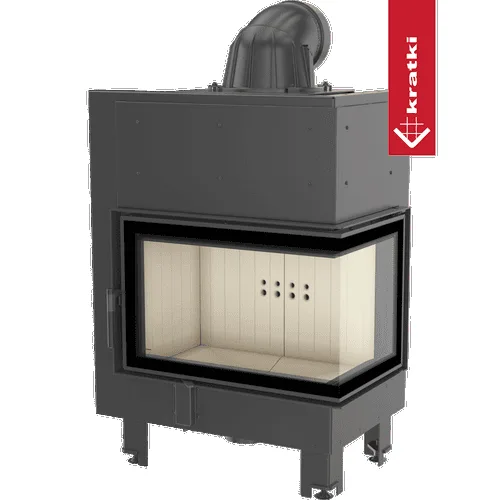

KRATKI MBM 10 kW Ø 200 Right-Sided Steel Wood-Burning Fireplace
2.837,45 €
VAT included
Available
Ref. MBM/P/BS
Free delivery. For the islands and destinations outside Europe, ask us for the cost. Delivery conditions
Questions before ordering? Check availability, delivery and accessories with our team.
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy efficiency
Made of high quality steel resistant to very high temperatures.
Efficient burning process and temperature maintenance to retain heat for longer thanks to combustion chamber coating with TERMOTEC -. Heat material that increases the temperature in the combustion chamber accumulation
High combustion and smoke tube located transversely - increases the area of heat exchange between the insert and the surroundings. Reducing the temperature of flue gases helps increase device efficiency.
Fireplace doors resistant to stress and stable thanks to the use of closed profile. Door seals designed in the profiled channel which guarantees correct adhesion and protects against eventual falling out during operation.
Combustion of fuel particles thanks to a deflector, which extends the flue gas escape path.
Air supplied from outside only thanks to built-in external air inlet fi 125mm. Air adjustment with a single regulator that prevents misuse.
Triple air system of the combustion chamber: primary air directed to the combustion plate; secondary air supplied through holes in the rear wall. Additionally, a glass cleaning air system (curtain air) has been applied.
HIGH level security
Perfect airtightness thanks to solid welds made under noble gas protection.
All steel elements are laser cut and bent on CNC bending machines.
Insert front is equipped with heat-resistant ceramic that can withstand temperatures up to 660oC.
Ecological combustion
The unit meets the requirements of Ecodesign regulations and restrictions of the BImSchV 2 standard, which determines the maximum CO emissions.
Convenient to use
Grateless filling of the fireplace - complete combustion in fine ash which means wood burns with minimal ash residue. The thermal energy obtained from wood is exploited to the maximum.
The bottom plate of the insert is significantly reduced in relation to the door.
Reduction of soot deposits through a pure glass system (curtain air).

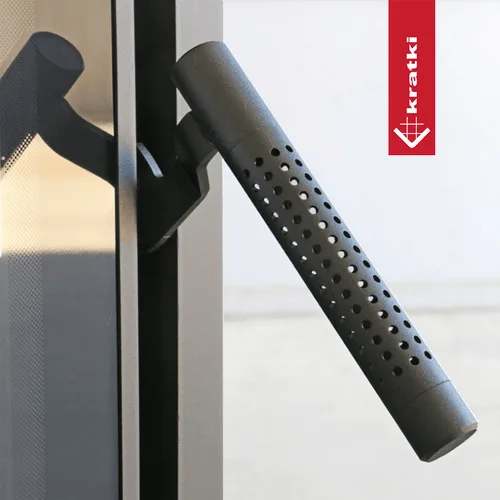

The special design of the perforated handle protects against excessive heating, which has the influence of high comfort of use of the fireplace.
MODERN DESIGN
A fireplace filling with two panels compiled together at angles (without brackets).
Decorative, heat-resistant glass that can withstand temperatures up to 660°C. Gives the fireplace a modern and elegant appearance, visually enlarges the front of the insert.
Specifications
- Colour
- Negro
- Material
- Acero
- Height (cm)
- 126.1
- Width (cm)
- 77.5
- Depth (cm)
- 49.2
- Weight (kg)
- 174
- Nominal heat output (kW)
- 10
- Certificates
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Fuel type
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350071892
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Version
- Esquina derecha
- Rango de potencia calorífica (kW)
- 4.5 - 12.5
- Eficiencia térmica (%)
- 81
- Temperatura de los gases de combustión (oC)
- 234
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Door opening
- Bien
- diámetro de la salida de gases de combustión
- 200
- Energy class
- A+
- EEI
- 107.5
- Eficiencia energética estacional (%)
- 71
- Potencia calorífica para la calefacción de espacios (kW)
- 10
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.096
- Emisión de CO (mg/m3)
- 1208
- Emisión de polen (mg/m3)
- 28
- Emisión de NOx (mg/m3)
- 106
- Emisión de OGC (mg/m3)
- 48
- Caudal másico de gases de combustión (g/s)
- 9.6
- número de piezas en un paquete.
- 1
- FRENTE
- Frontal de acero con cristal serigrafiado
- Área activa mínima requerida de las rejillas de entrada (cm2)
- ?500
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- ?700
