Denia Stoves DC-100
2.917,00 €
KRATKI MBZ Left 13 kW Ø 200 Steel Wood-Burning Fireplace Bent Glass
2.398,80 €
VAT included
Available
Ref. MBZ/L/BS/SG
Free delivery. For the islands and destinations outside Europe, ask us for the cost. Delivery conditions
Questions before ordering? Check availability, delivery and accessories with our team.
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy use
Made of high-quality steel resistant to very high temperatures.
efficient burning process and temperature maintenance to keep heat for longer thanks to combustion chamber lining with THERMOTEC -. Heat accumulation material that raises the temperature in the combustion chamber
High combustion and horizontal smoke tube - increases the heat exchange area between the insert and surroundings. Reducing the temperature of escape gas helps increase device efficiency.
fireplace doors resistant to stress and stable thanks to the use of closed profile. door seals designed in a profiled channel which guarantees correct adhesion and protects against possible falling during operation.
combustion of fuel particles thanks to deflector, which extends the path of gas escape.
The air supplied from outside only thanks to built-in external air inlet fi 125mm. air adjustment with a single regulator that prevents misuse.
Triple air system for the combustion chamber: primary air directed at the combustion plate; secondary air supplied through holes located on the rear wall. Additionally, a clean glass air system has been applied (air curtain).
safety at HIGH level
perfect airtightness thanks to solid welds made in noble gas protection.
All steel elements are laser cut and bent on CNC bending machines.
Front of insert is equipped with heat-resistant ceramic that can support temperatures up to 660 o C.
ecological combustion
The unit meets the requirements of ecological design standards and restrictions of the BImSchV 2 standard, which determines the maximum CO emission.
convenient to use
Grateless filling of the fireplace - complete combustion of dust which means that wood is burned in fine ash in minimum quantity. the thermal energy obtained from wood is exploited to the maximum.
The bottom plate of the insert is significantly reduced compared to the door.
Reducing soot deposits by means of a clean glass system (air curtain).
The special design of the perforated handle protects against excessive heating, which influences the high comfort of use of the fireplace.
MODERN DESIGN

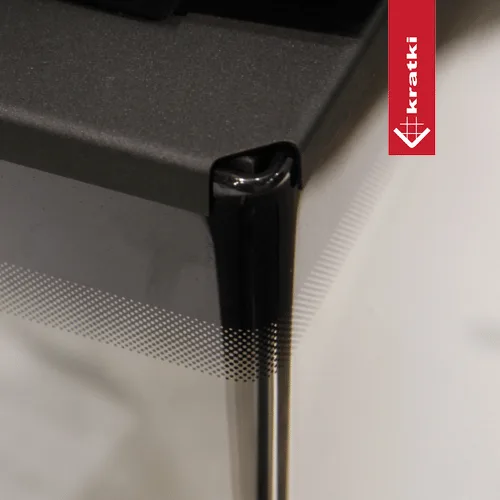

filling of the fireplace with decorative bent glass.
decorative, heat-resistant glass that can support temperatures up to 660 o C. Gives a fireplace a modern and elegant appearance, visually enlarges the front part of the insert.
Specifications
- Color
- Negro
- Material
- Acero
- Alto (cm)
- 139.9
- Ancho (cm)
- 77.5
- Profundidad (cm)
- 53.7
- Peso (kg)
- 200
- Potencia nominal (kW)
- 13
- Certificados
- KRATKI PRO, Ecodiseño, Destinado a recuperación, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350033111
- Equipo
- Cargando la cámara de combustión, Toma de aire, Vidrio decorativo
- Versión
- Esquina izquierda
- Rango de potencia calorífica (kW)
- 6.0 - 16.0
- Eficiencia térmica (%)
- 81
- Temperatura de los gases de combustión (oC)
- 233
- Longitud máxima de la palanquilla (cm)
- 50
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 200
- Clase energética
- A+
- EEI
- 107.5
- Eficiencia energética estacional (%)
- 71
- Potencia calorífica para la calefacción de espacios (kW)
- 13
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.087
- Emisión de CO (mg/m3)
- 1094
- Emisión de polen (mg/m3)
- 27
- Emisión de NOx (mg/m3)
- 119
- Emisión de OGC (mg/m3)
- 46
- Caudal másico de gases de combustión (g/s)
- 12.4
- número de piezas en un paquete.
- 1
- FRENTE
- Frontal de acero con cristal curvado serigrafiado
- Área activa mínima requerida de las rejillas de entrada (cm2)
- ?700
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- ?900
