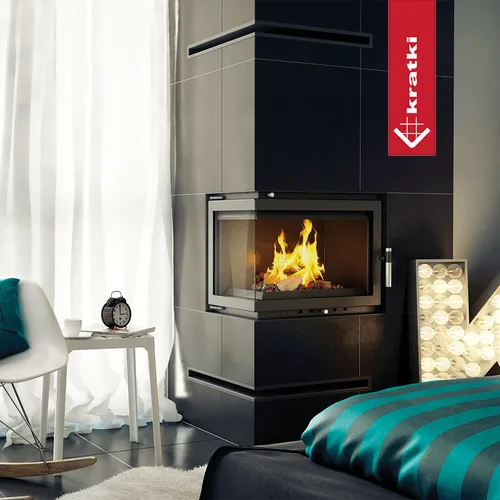

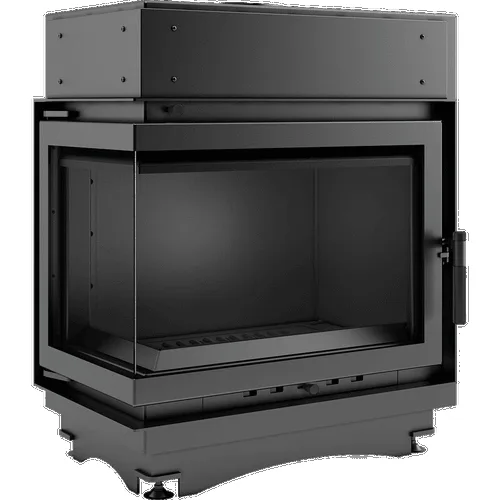

Wood-Fired Water Fireplace KRATKI MAJA left 8 kW Ø 180
2.955,00 €
VAT included
Available
Ref. MAJA/PW/BL/12/BS/W
We will confirm delivery times, transport and installation with no obligation.
Description
MAXIMUM energy usage
The body and front part of the insert are resistant to high temperatures, thanks to the high quality steel used in production.
Built with smoke tubes and high combustion chamber, which increase the heat exchange surface area.
Increase in heat exchange surface due to incorporated smoke tubes and high combustion chamber.
Draft regulation of the fireplace using a damper function.
Manual control over the combustion process carried out by the ash regulator.
& nbsp;
HIGH level safety
A perfect seal thanks to solid welds made in noble gas protection.
All steel elements are cut with laser and bent on CNC bending machines.
Overshoot protection by the incorporated coil tube - medium inlet/outlet connector ”.
& nbsp;
ecological combustion
The unit meets eco-design requirements standards and restrictions of the BImSchV 2 standard, which determines maximum CO emission.
& nbsp;
convenient to use
The insertion front is equipped with heat-resistant ceramics that can withstand temperatures up to 660 °C.
& nbsp;
MODERN DESIGN
Filling the fireplace with two panels compiled together at angles (without parentheses).
& nbsp;

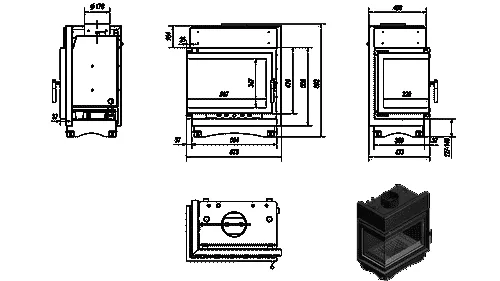

Specifications
- Material
- Acero, Hierro fundido
- Alto (cm)
- 80.25
- Ancho (cm)
- 67.5
- Profundidad (cm)
- 40.75
- Peso (kg)
- 138
- Potencia nominal (kW)
- 8
- Certificados
- Ecodiseño, BImSchV 2
- Tipo de combustible
- Madera caducifolaria sazonada (humedad ?20%)
- EAN
- 5901350049631
- Equipo
- Ceniza
- Rango de potencia calorífica (kW)
- 3.5 - 10
- Eficiencia térmica (%)
- 80
- Temperatura de los gases de combustión (oC)
- 236
- Longitud máxima de la palanquilla (cm)
- 33
- CIERRE
- No
- Apertura de puerta
- Izquierda
- diámetro de la salida de gases de combustión
- 180
- Clase energética
- A
- EEI
- 105
- Eficiencia energética estacional (%)
- 70
- Potencia calorífica para la calefacción de espacios (kW)
- 2
- La emisión de CO (al 13% de O2) ? expresada en %
- 0.098
- Emisión de CO (mg/m3)
- 1235
- Emisión de polen (mg/m3)
- 31
- Emisión de NOx (mg/m3)
- 140
- Emisión de OGC (mg/m3)
- 63
- Área activa mínima requerida de las rejillas de entrada (cm2)
- 60
- Campo activo mínimo requerido de las rejillas de salida (cm2)
- 120
- Potencia media del agua (kW)
- 6
- Presión máxima de trabajo (bar)
- 2
- Capacidad de agua (l)
- 18
