VENTILATION KIT FOR CONCEPT RANGE BODART & GONAY

The optional ventilation kit for the Concept range from Bodart & Gonay is the perfect complement for those seeking efficient, uniform and above all silent heat distribution.

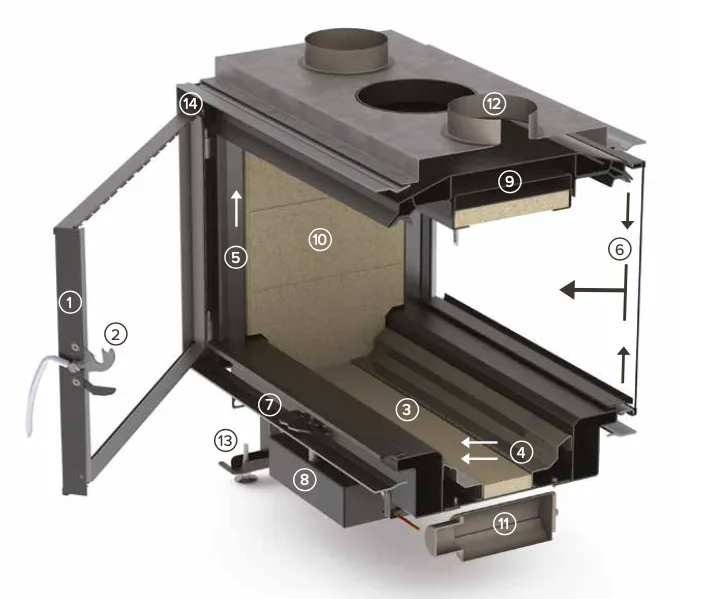

Manufactured and integrated specifically for Concept fireplace inserts (including double-sided DF models), this system consists of two next-generation fans coupled to an electronic control plate. Unlike conventional systems, this kit not only extracts heat from the body of the insert, but manages it intelligently.

Key system advantages:

• Silent operation: Bodart & Gonay has selected the quietest fans on the market. The system allows you to enjoy a fire with the ventilation switched off when not needed, guaranteeing complete silence.
• Smart electronic management: Fan speed adjusts automatically based on insert temperature. When the fire is cold, they don't operate; as it heats up, they start at minimum speed and increase progressively.
• Overheat protection: Even if position "0" (off) is selected, if the firebox temperature rises excessively, ventilation will activate automatically to evacuate excess heat, protecting the fireplace and surrounding structure.
• 3-speed selector: Allows users to choose between silent mode (position I) or maximum heat diffusion (position II).
• Automatic shut-off when door opens: An integrated switch detects door opening and immediately stops the fans, resuming operation when closed.

This kit is ideal for large rooms, homes with dual ventilation or for those seeking to maximise every kilowatt of heat generated.

Compatibility: Concept range single-sided and double-sided (Concept 540, 540V, 690, 790, 790V, 920).

Kit components: Two high-efficiency fans, electronic control plate with configurable DIP switches, 3-position speed selector (0, I, II) and sealed 24V power supply.
